Garage Door Cable Replacement — Before the Door Goes Off the Track
A snapped garage door cable is the fault people notice last and pay for most. The door begins to tilt at an angle, one side rising faster than the other, and a loose piece of steel wire is coiled at the bottom of the track. Those cables are what transfer the lifting power of the spring to the door, and if one gives way the entire load falls on the other side. The panels begin to bend and the rollers jump the rail in a few cycles. Garage door cable replacement is a quick, regular job, if it gets to us before that happens.
- Garage door cable repair — most doors back in service in 60-90 minutes
- Cables replaced in matched pairs, re-set drums, door balance checked by hand
- Written quote before any work is commenced, including the garage door cable repair cost upfront
If the door is hanging crooked or a cable is loose, do not use the opener and call us. Each additional cycle is more costly than the cable.
Request an Estimate
We’ll get back to you within 15 minutes.
Garage Cable Repair: Who Does It And Why It Matters
Search for garage door cable repair and you’ll see the results split into two groups. Some are real companies with trucks and licensed technicians and spools of cable in the van. The rest are call brokers, selling your number to whoever pays the most that week. That difference matters on cable work, since the cables run directly off the spring system – a job that looks simple from the driveway is being done next to several hundred pounds of stored tension.
That’s how ours works. One number, 833-435-4540, answered by a live operator. You get a two hour window of arrival and a text when the truck leaves. Our technician will measure the length and diameter of your existing garage door cable, check the drums, springs, bearings, rollers and balance of the door, and give you a written price before a tool comes out of the back of the van. We start, if you approve. Decline it and you pay the quoted trip fee, nothing else.
Most garage cable replacement calls are completed on the first visit because our vans are stocked with common lengths and gauges of lift cables, as well as drums, bearings, rollers, springs and complete opener units. Sizing is more important than most homeowners realize, and it is the whole difference between a garage door cable installation that lasts and one that does not. A cable that is close but not right will wind unevenly on the drum, wear at the same point every cycle and fail again within a year. We measure, rather than guess.
Visual Proof: Before & After

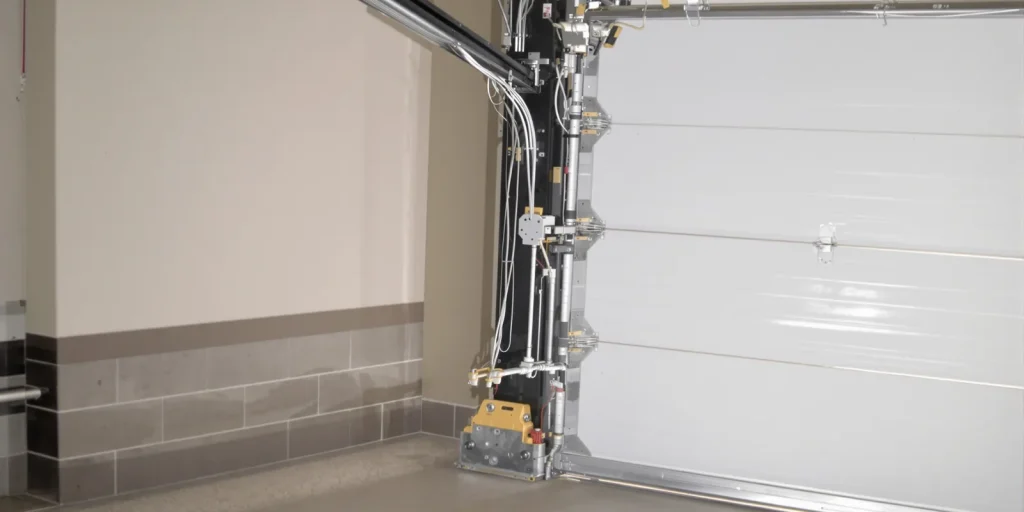

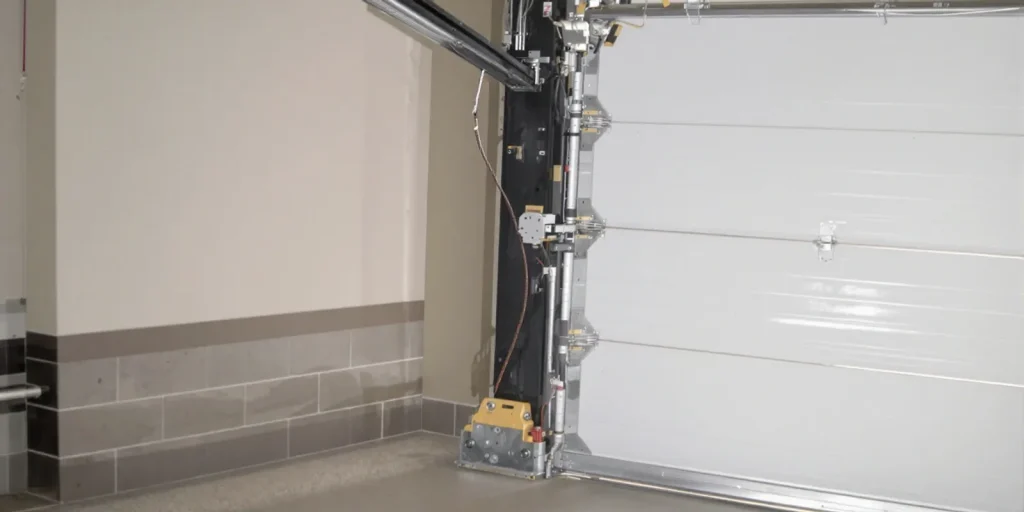

Century Garage Door Service technician replacing a garage door cable on a residential double garage door after one lift cable snapped.
Why Garage Door Cables Break (and How We Repair Them)
Garage cables don’t normally break without warning; they just give their warning where nobody looks. Almost all the failures we look at can be traced back to one of four causes, and the fix only works if we fix the one that really started it. That is why a cable that has snapped once on a door that has never been serviced will often snap again if only the cable is changed.
Fraying From The Inside Out: What Causes It Most Often
A lift cable is made up of many fine strands, and wears from the core outwards. When you see broken strands on the surface, the cable is already about to fail. That’s why the helpful warning sign isn’t the cable itself but the door. A garage door that begins to sit a little crooked, or one side that rises faster than the other, is typically a cable stretching before it snaps. Replacing garage door cables in matched pairs is standard for us, because the second one has done exactly the same number of cycles as the first.
Garage Door Cable Snapped After A Spring Failure
When a torsion spring lets go, the shock load goes straight into the cables. Sometimes they survive it, sometimes they don’t, and sometimes they come off the drum whole but wound up wrong. If the door has had a spring replaced and now a cable has failed, then it is almost certain the two are related. We test the spring system on every cable call for exactly this reason, and if the spring is the real problem we will let you know instead of replacing a cable that is just a symptom.
Drum Damage And Uneven Winding
At either end of the torsion shaft, the cable for a garage door is wound around a grooved drum. If a drum comes loose on the shaft, or the grooves are worn, the garage door tension cable stacks unevenly, rubs against itself and cuts through. When a door is out of level by an inch or more, the cable is often blamed for a drum problem. We reset the drum position with the door at rest and check the set screws into the shaft. We replace grooved or scored drums, rather than winding a new cable onto a worn one.
Rust, Water And Bottom Bracket Wear
Cables anchor at the bottom bracket, each side of the door. That is the lowest point in the garage – where water sits, salt collects and the cable lives its life closest to the damp. Rust in those last few inches is a common failure point, especially on coastal or older properties. Also good to know is that the cable attached to the red handle is not a lift cable; that door cable is the garage door opener cable, which releases the trolley and carries no weight of the door at all. Pulling it on a door with a broken lift cable can drop the door without warning.
Garage Door Cable Repair Cost: Both Cables or Just One?
Cable work is one of the less expensive repairs on our list, which is exactly why it is worth doing early. The cost depends on the door, whether the drums and bearings need to be replaced as well, and if the door has been running off-level long enough to damage rollers or panels. Our recommendation is always the same: on a two-cable door, change both. The other cable is the same age, same gauge and has done the same number of cycles, and it costs more to pay a second call-out fee in three months than to do the pair now.
Cable Replacement
- Best when the door and tracks are still straight and the failure is confined to the cables, drums or bottom brackets — the most common situation by far.
- Re-cabled, balanced and running same visit
- Most work completed within 60 to 90 minutes
- Cables installed in matched pairs, drums and bearings checked
- Does not repair panels bent from going off the track
Full Lift System Service
- Worth doing if a cable has failed as well as a spring, if the drums are grooved, or on a door older than ten years that has never had its lift hardware touched.
- New cables, drums, center and end bearings fitted together
- Springs evaluated and replaced in pairs where they are at end of cycle life
- Replace corroded or worn bottom brackets and rollers
- Full balance recalibration and safety reversal test
How To Fix A Garage Door Cable — And Why This Is Not A DIY Job
Searching for how to replace a garage door cable, or how to fix cable on garage door, will bring up many guides, typically with a garage door cable diagram showing the wire’s path from the bottom bracket to the drum. The diagram is the simple part. The part those guides skip is that the cable is under load from the spring system the whole time. The standard method to reattach one is to clamp the door, unwind the torsion spring and re-tension it afterward. That is spring work, and spring work is what sends people to hospital. Here is what you can safely do instead.
- 1Stop using the opener immediately.
A door running on one cable climbs unevenly and works its way out of the rail. Every cycle is a risk of turning a cable job into a panel job. If someone else in the house might press the button, unplug the opener.
- 2Do not pull the red emergency release cord.
That cord releases the trolley, not the door. On a door with a lift cable failure it can drop the weight without warning. Leave it where it is and tell the technician that you haven’t touched it.
- 3Do not attempt to reattach the cable on the bracket.
This is the step that causes the injuries and every DIY guide begins with it. The cable is loose because the load has shifted, not because it is safe. Putting it back on puts your hands right under a door held by damaged hardware.
- 4Don’t move the car with the door half-open.
Wait until the door is fully open and steady before you move it. Never crawl under the door to move it.
- 5Look, note and call.
From a safe distance you can see which side the cable has gone, if it’s frayed or snapped clean, and if the door is sitting square. Call the dispatcher at 833-435-4540 and the van rolls up with the right cable and drum on board.
Safety Warning
Never try to reattach, re-route or re-tension a garage door cable. Never work underneath a door that is hanging crooked or is supported by only one cable. The cables run from torsion springs that have stored several hundred pounds of energy and release without warning. There is a reason we have winding bars, clamps and training.
If there is a broken cable, leave the door as it is and call 833-435-4540. Our technicians are licensed, insured and trained for this type of job so you never have to take the risk.
What Proper Cable Replacement Includes
A lot of companies will put a cable in for you. Fewer will find out why the last one failed. That’s the difference between a fix that lasts ten years and one you’re calling us about again next winter, and that’s exactly how we’d judge our own competition.
A proper job is when the tech replaces both cables and not just the broken one, checks the drums for grooving and resets their position on the shaft, inspects the springs for the shock damage that often causes the failure, checks the bottom brackets for rust, balances the door by hand with the opener disconnected and tests the safety reversal before leaving the job site. And be wary of unusually cheap phone quotes here too – the difference is almost always a single cable fitted to a worn out drum, a repair with an expiry date.
Ask the company two questions before you agree to anything. “Is the price you are quoting written and final?” and “Are you replacing both cables, and are you checking the drums and springs?” Any outfit that hesitates on either one has already answered a third question you didn’t ask.
Garage Door Cable Replacement FAQs
How much does garage door cable repair cost?
Cables are one of the cheapest repairs we do. The price depends on the door, whether the drums, bearings or bottom brackets also need replacement, and whether the door has been running off-level long enough to ruin rollers or panels. We inspect the complete lift system and quote in writing on site before any work commences, and if you decline you only pay the quoted trip fee. Call 833-435-4540 and we will talk you through the probable range for your door before we arrive.
How do I replace a garage door cable myself?
We strongly recommend you don’t do it, and not because of the call-out fee. The cables come straight off the torsion springs, and to properly reattach one you have to clamp the door and unwind the spring first. That’s the most dangerous job on a garage door. Checking which side has failed. Good. Keeping people away from the door. Good. Clearing the bay. Good. Trying to replace the cable on the garage door yourself. Not good.
Should I replace one cable or both?
Both, on any door with two cables. The surviving cable is the same gauge, the same age and has gone through the same number of cycles as the one that broke, so it’s usually months behind it. Replacing one cable also causes the door to pull unevenly, wearing the drums, rollers and opener. Doing the pair in one visit is cheaper than two separate call-outs.
How can I tell if my garage door cable is failing?
The door warns you before the cable. Look for one side rising faster than the other, the door sitting a little askew in the frame, a grinding or slapping noise near the bottom of the track, or slack wire coiled at the bottom bracket. If you can see the cable fraying, the cable is already near failure, because these cables wear out from the inside out.
How long does a garage door wire replacement take?
Most jobs take between 60 and 90 minutes and include replacing both cables, resetting the drums and rebalancing the door. Allow longer where the springs have also failed, or the drums and bearings need replacing. Common cable lengths and gauges are stocked in our vans, so the job is usually completed on the first visit rather than booked in for a return visit.
One Call And It’s Running Smooth Again
A failed cable is expensive to ignore, and cheap to fix. If you leave it running it will rip the door off its rail, bend panels, wear out the drums and eventually cost several times what the cable would have. It is one of the most routine jobs on our list, and it is almost always cheaper today than it will be next week.
Live dispatcher, written quote, cables on the van, and a door running level again.
